Altronix VR1TM5 Power Conversion Module Instruction Manual

1. Introduktion

This manual provides detailed instructions for the safe and efficient installation, operation, and maintenance of the Altronix VR1TM5 Power Conversion Module. Please read this manual thoroughly before attempting to install or operate the device. Retain this manual for future reference.

2. Säkerhetsinformation

Följ alltid följande säkerhetsåtgärder för att förhindra skador på enheten:

• Koppla från strömmen: Always disconnect power to the circuit before installing, servicing, or removing the module.
• Kvalificerad personal: Installation and servicing should only be performed by qualified personnel familiar with low-voltage kraftsystem.
• Korrekt Voltage: Se till att ingångsvolymentage matches the specifications of the VR1TM5 module. Applying incorrect voltage kan skada enheten.
• Polaritet: Observe correct polarity when connecting input and output wiring. Incorrect polarity can cause damage.
• Endast för inomhusbruk: This module is designed for indoor use only. Do not expose it to moisture or extreme temperatures.
• Ventilation: Säkerställ tillräcklig ventilation runt modulen för att förhindra överhettning.

3. Paketets innehåll

Kontrollera att alla artiklar finns i paketet:

• Altronix VR1TM5 Power Conversion Module (1 Unit)
• Instruction Guide (This document)

4. Produkt överview

The Altronix VR1TM5 is a compact power conversion module designed to convert a 24VAC or 24VDC input into a regulated 5VDC output at 1 Amp. This indoor module is suitable for various low-voltage applications requiring a stable 5VDC power source. Its plastic enclosure and terminal connections ensure ease of installation and reliable performance.

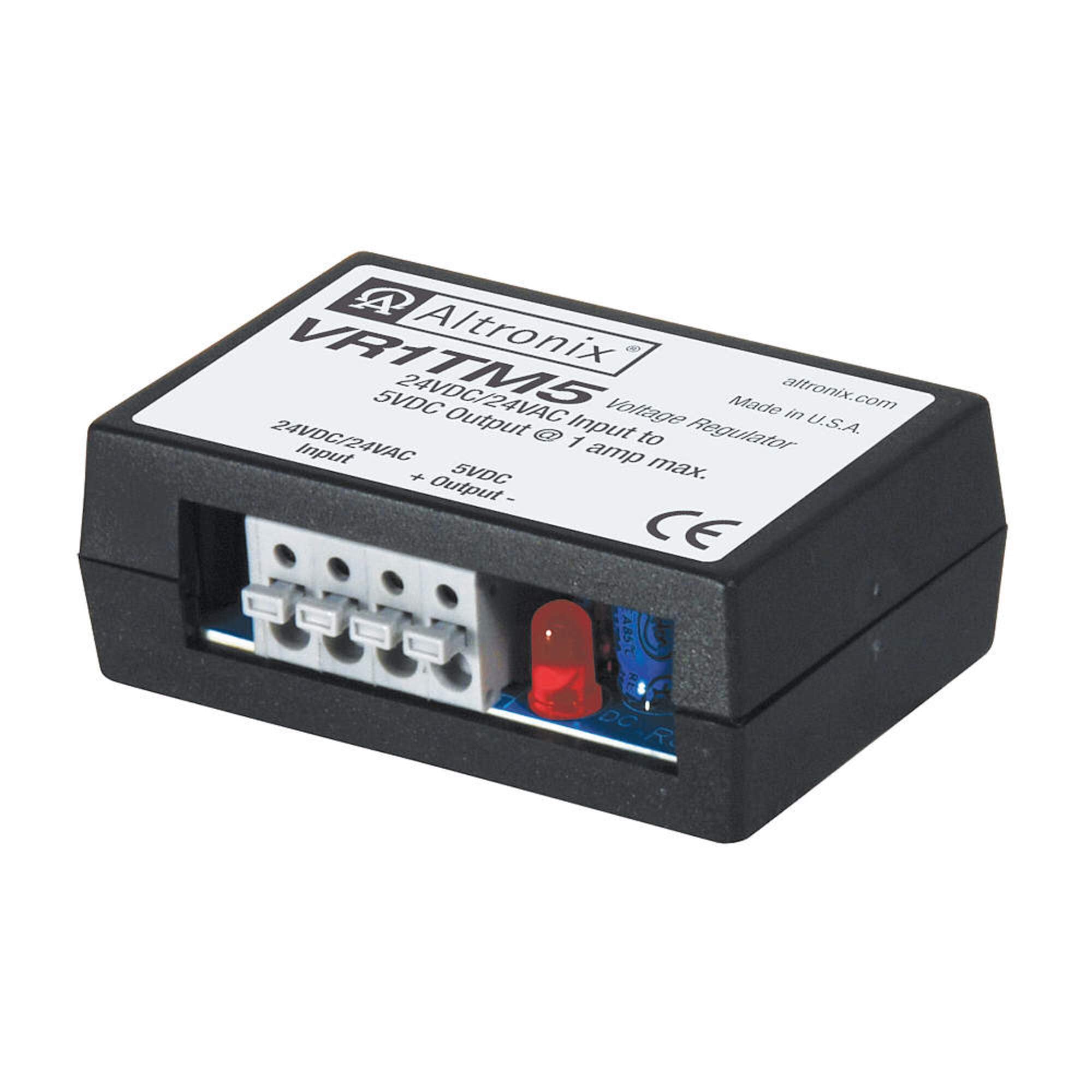

Image: Altronix VR1TM5 Power Conversion Module. This image displays the compact black plastic module with terminal blocks for input and output connections.

5. Specifikationer

6. Installation och installation

Follow these steps for proper installation of the VR1TM5 module:

1. Strömavstängning: Ensure that all power to the installation area is disconnected before beginning.
2. Montering: Mount the VR1TM5 module in a secure, dry, and well-ventilated indoor location. The module includes hook and loop fasteners for easy mounting.
3. Ingångskablar: Connect the 24VAC or 24VDC power source to the input terminals of the VR1TM5 module. Observe correct polarity for DC input. Refer to the markings on the module for positive (+) and negative (-) connections.
4. Utgångsledningar: Connect the device requiring 5VDC power to the output terminals of the VR1TM5 module. Ensure correct polarity for the connected device.
5. Verifiera anslutningar: Double-check all wiring connections to ensure they are secure and correctly polarized.
6. Applicera ström: När alla anslutningar har verifierats, återställ strömmen till kretsen.

7. Bruksanvisning

The Altronix VR1TM5 Power Conversion Module operates automatically once correctly installed and powered. It will convert the 24VAC or 24VDC input to a stable 5VDC output. No user intervention is required for its basic operation.

• Strömindikator: The module may feature an LED indicator (if present) to show power status. Refer to the module's labeling for specific indicator functions.
• Lastkapacitet: Ensure the connected device's current draw does not exceed the module's 1 Amp output capacity. Overloading can cause the module to shut down or be damaged.

8. Underhåll

The Altronix VR1TM5 module requires minimal maintenance. Follow these guidelines to ensure long-term performance:

• Hålla ren: Periodically clean the exterior of the module with a soft, dry cloth. Do not use liquid cleaners or solvents.
• Inspektera anslutningar: Occasionally check all wiring connections to ensure they remain secure and free from corrosion.
• Ventilation: Ensure that the module's ventilation is not obstructed.
• Miljöförhållanden: Maintain the module within its specified operating temperature and humidity ranges.

9. Felsökning

If the VR1TM5 module is not functioning as expected, consider the following:

• Ingen uteffekt:
  • Verify that the input power source (24VAC or 24VDC) is active and correctly connected to the module's input terminals.
  • Check all wiring for loose connections or breaks.
  • Ensure correct input and output polarity.
  • Confirm that the connected device is not drawing more than 1 Amp, which could cause the module to protect itself.
• Felaktig utgångsvolymtage:
  • Mät ingången voltage to ensure it is within the specified 24VAC/VDC range.
  • Om ingången voltage is correct and the output is still incorrect, the module may be faulty.
• Överhettning:
  • Ensure the module is not covered and has adequate airflow.
  • Reduce the load on the output if it is consistently running hot.

If troubleshooting steps do not resolve the issue, contact Altronix customer support for further assistance.

10. Garanti och support

For information regarding the product warranty, please refer to the official Altronix website or contact Altronix customer service directly. Warranty terms and conditions may vary.

Tillverkare: Altronix

For technical support or service inquiries, please visit the Altronix official webwebbplatsen eller kontakta din auktoriserade återförsäljare.
