Sharp LC-40LE653U 40-Inch Smart LED TV User Manual

1. Inställning

1.1 Uppackning och innehåll

Ta försiktigt ut TV:n och alla tillbehör ur förpackningen. Se till att alla komponenter finns med:

Sharp LC-40LE653U 40-Inch Smart LED TV
Fjärrkontroll
2 AA-batterier

1.2 Montering av stativ

If placing the TV on a table, attach the included stand. Refer to the diagram below for proper assembly. Ensure all screws are securely fastened.

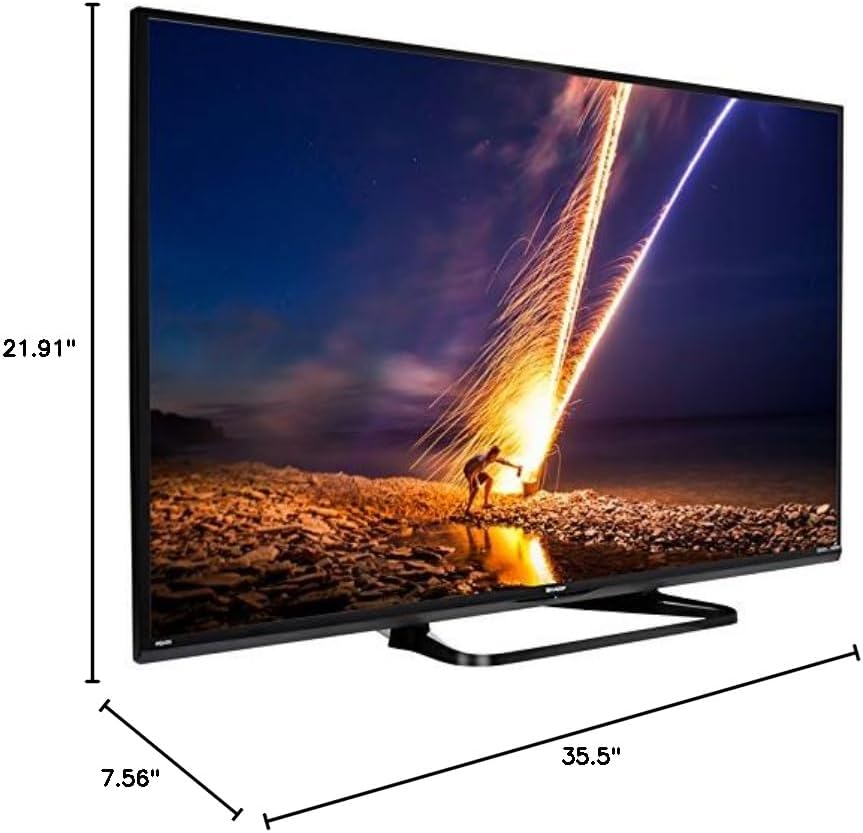

Diagram showing the dimensions of the Sharp LC-40LE653U TV with its stand. — Figure 1.2.1: TV Dimensions and Stand Placement. This image illustrates the overall dimensions of the television, including its depth, width, and height, which are crucial for stand installation and placement.

1.3 Ansluta externa enheter

Connect your external devices such as cable boxes, Blu-ray players, or gaming consoles to the TV's input ports. The TV features multiple connectivity options.

Sida view of the Sharp LC-40LE653U TV showing various input ports. — Figure 1.3.1: Side Panel Connections. This image displays the side profile of the TV, highlighting accessible ports such as USB and HDMI for convenient connection of devices.

Närbild view of the Sharp LC-40LE653U TV's rear input ports. — Figure 1.3.2: Rear Panel Connections. A detailed view of the rear input panel, showing HDMI, Ethernet, Component/Video, and DTV/TV (Antenna) ports. This is where most permanent connections are made.

Tillgängliga portar inkluderar:

HDMI: 2 ports for high-definition audio and video. One HDMI port supports MHL (Mobile High-Definition Link).
USB: 1 port for media playback or connecting a USB device.
Ethernet: För trådbunden nätverksanslutning.
Component/Video: For older video devices.
DTV/TV (Antenna): För anslutning av en antenn eller kabel-TV-matning.
Ljud ut: Optical for digital audio, and RCA for analog audio.

1.4 Strömanslutning

After connecting all necessary devices, plug the TV's power cord into a wall outlet.

1.5 Initial installation

Upon first power-on, the TV will guide you through an initial setup process. This includes language selection, time zone, and network configuration. For Wi-Fi setup, select your network and enter the password.

2. Bruksanvisning

2.1 Fjärrkontrollfunktioner

The remote control allows you to access all TV functions. Insert the two AA batteries into the remote control, ensuring correct polarity.

Image of the Sharp LC-40LE653U TV remote control. — Figure 2.1.1: Remote Control Layout. This image displays the full layout of the remote control, including power, input, volume, channel, navigation, and dedicated app buttons like Netflix.

Ström (röd knapp): Slår på eller av TV:n.
Input: Selects the input source (HDMI, TV, USB, etc.).
VOL +/-: Justerar volymnivån.
CH +/-: Byter TV-kanaler.
Navigeringsknappar (Upp/Ned/Vänster/Höger/Enter): Används för att navigera i menyer och välja alternativ.
SMART: Accesses the Smart Central Apps menu.
MENY: Opens the main TV menu for settings adjustments.
NETFLIX: Direktåtkomstknapp för Netflix-appen.

2.2 Smart TV Features (Smart Central Apps)

The Sharp LC-40LE653U features Smart Central Apps, providing access to various online services and a web browser. Ensure your TV is connected to the internet via Wi-Fi or Ethernet.

Främre view of the Sharp LC-40LE653U TV displaying the Smart Central Apps interface. — Figure 2.2.1: Smart Central Apps Interface. This image shows the TV screen with the Smart Central Apps overlay, featuring icons for Netflix, YouTube, Pandora, and other applications.

Åtkomst till appar: Press the 'SMART' button on your remote to open the Smart Central Apps menu.
Tjänster som stöds: Includes Hulu Plus, Netflix, Pandora, Vudu, and YouTube.
Web Webbläsare: Använd den inbyggda web browser for general internet browsing. Navigation is done via the remote control.

2.3 Wallpaper Mode

When the TV is turned off, Wallpaper Mode can display virtually any image. To use this feature, connect a USB drive containing your desired images to the TV's USB port. Navigate to the Wallpaper Mode settings in the TV menu to select and configure your images.

3. Underhåll

3.1 Rengöring av TV:n

För att rengöra skärmen, torka försiktigt av den med en mjuk, torr och luddfri trasa. För envisa märken, torka lättampen the cloth with water or a specialized screen cleaner. Avoid using harsh chemicals, abrasive cleaners, or direct spraying of liquids onto the screen or cabinet.

Clean the TV cabinet with a soft, dry cloth. Ensure the TV is unplugged before cleaning.

3.2 Programuppdateringar

Periodically check for software updates through the TV's settings menu to ensure optimal performance and access to the latest features. Updates can be performed via the internet connection.

4. Felsökning

If you encounter issues with your Sharp LC-40LE653U TV, refer to the following common solutions:

Ingen ström: Ensure the power cord is securely plugged into both the TV and a working wall outlet. Check if the power indicator light on the TV is on.
Ingen bild/ljud: Verify the correct input source is selected using the 'Input' button on the remote. Check all cable connections (HDMI, component, etc.) are secure.
Dålig bildkvalitet: Justera bildinställningarna (ljusstyrka, kontrast, skärpa) i TV-menyn. Se till att ingångskällan ger en högkvalitativ signal.
Ingen internetanslutning: Check your Wi-Fi router or Ethernet cable connection. Re-enter your Wi-Fi password in the TV's network settings. Restarting your router may resolve connectivity issues.
Fjärrkontrollen fungerar inte: Byt batterier i fjärrkontrollen. Se till att det inte finns några hinder mellan fjärrkontrollen och TV:ns IR-sensor.

For more detailed troubleshooting steps, consult the full online manual or contact customer support.

5. Specifikationer

Key technical specifications for the Sharp LC-40LE653U 40-Inch Smart LED TV:

Särdrag	Specifikation
Modellnummer	LC-40LE653U
Skärmstorlek	39.5 tum (40-tumsklass)
Displayteknik	LCD
Upplösning	1080p (Full HD)
Uppdateringshastighet	60 Hz
Bildförhållande	16:9
Anslutningsteknik	Wi-Fi
Hårdvarugränssnitt	Ethernet, HDMI, USB
Totalt antal HDMI-portar	2 (one with MHL support)
Totalt antal USB-portar	1
Ljudingång	HDMI, Optical, USB
Högtalare maximal uteffekt	20 Watt
Produktmått (D x B x H)	7.56 x 35.5 x 21.91 cm
Objektets vikt	16.3 pund
Monteringstyp	Bordsfäste
Internettjänster som stöds	Hulu Plus, Netflix, Pandora, Vudu, YouTube
Energy Star-certifierad	Ja

6. Garanti och support

6.1 Produktgaranti

This Sharp LC-40LE653U TV comes with a 1 års begränsad garantiSpara ditt inköpsbevis för garantiärenden. Garantin täcker tillverkningsfel under normal användning.

6.2 Kundsupport

For technical assistance, troubleshooting beyond this manual, or warranty service, please contact Sharp customer support. Refer to the official Sharp webwebbplatsen eller ditt produktregistreringskort för den senaste kontaktinformationen.
