FTVOGUE Woodworking Dowelling Jig Instruction Manual

1. Introduktion

This manual provides instructions for the safe and effective use of your FTVOGUE Woodworking Dowelling Jig. This tool is designed to assist in creating accurate and strong dowel joints in various woodworking projects. Please read this manual thoroughly before operation to ensure proper usage and to prevent damage to the tool or workpiece.

2. Säkerhetsinformation

Always follow basic safety precautions when using power tools and woodworking equipment. Failure to do so may result in serious injury.

• Ögonskydd: Använd alltid skyddsglasögon eller skyddsglasögon för att skydda dina ögon från flygande skräp.
• Stabilt arbetsstycke: Se till att arbetsstycket är ordentligt fastspäntampeller hållas för att förhindra rörelse under borrning.
• Correct Drill Bit: Use only sharp, correctly sized drill bits appropriate for the material and the jig's bushings.
• Read Drill Manual: Refer to your power drill's instruction manual for its specific safety guidelines.
• Håll händerna klara: Keep hands and fingers away from the drill bit and the drilling area during operation.
• Rent arbetsområde: Maintain a clean and well-lit work area to avoid accidents.

3. Produkt överview

The FTVOGUE Woodworking Dowelling Jig is a compact and versatile tool designed for creating precise dowel holes. It features a durable plastic body with integrated drill guide bushings and an adjustable fence.

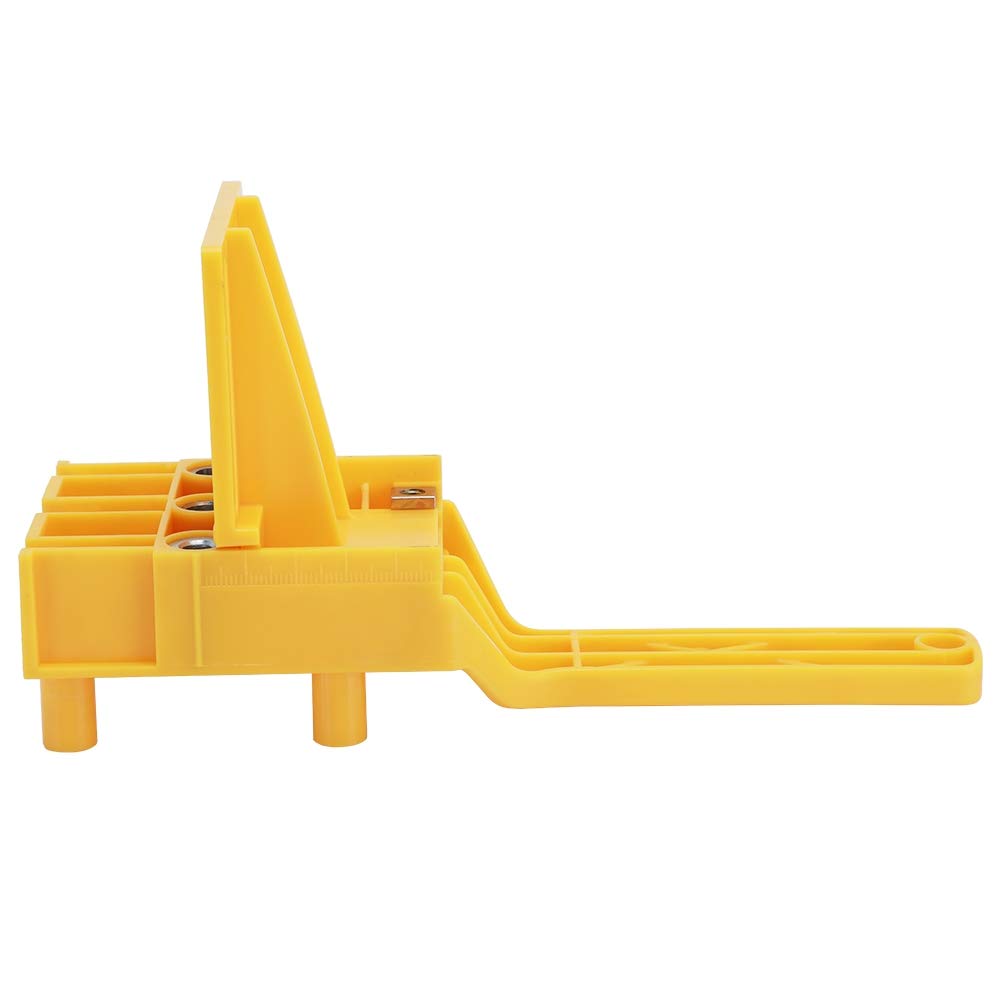

Figure 3.1: The FTVOGUE Woodworking Dowelling Jig, a yellow plastic tool with multiple drill guide bushings for various dowel sizes.

Figur 3.2: En närbild view of the jig's drill guide bushings, demonstrating the robust plastic material and precise hole alignment.

Komponenter:

• Huvuddel: The primary yellow plastic housing of the jig.
• Drill Guide Bushings: Integrated metal sleeves that guide the drill bit for accurate hole placement.
• Justerbart staket: A movable guide that allows for setting the jig's position relative to the edge of the workpiece.
• Hantera: Ergonomically designed for secure gripping during operation.

4. Inställning

Proper setup is crucial for achieving accurate dowel joints.

1. Determine Wood Thickness: Measure the thickness of the wood pieces you intend to join.
2. Adjust the Fence: Loosen the screws on the adjustable fence. Slide the fence to the desired position to center the drill bit on the edge of your workpiece or to achieve a specific offset. Tighten the screws securely to lock the fence in place.

Bild 4.1: Undersidan view of the dowelling jig, illustrating the adjustable fence mechanism for precise positioning.


Figure 4.2: A hand using a screwdriver to adjust the fence of the dowelling jig, ensuring accurate alignment for drilling.

3. Välj borr: Choose a drill bit that matches the diameter of the dowel pins you will be using and fits snugly into the jig's guide bushings.
4. Set Drill Depth: If your drill has a depth stop, set it to the appropriate depth for your dowel pins, considering the thickness of the wood and the desired penetration.

5. Bruksanvisning

Follow these steps to create accurate dowel joints:

1. Markera borrpositioner: On your workpiece, accurately mark the locations where you intend to drill the dowel holes.
2. Position the Jig: Align the jig's fence with the edge of your workpiece and position the desired drill guide bushing over your marked drilling point. Ensure the jig is firmly pressed against the wood.
3. Säkra jiggen: Hold the jig firmly with one hand, applying downward pressure to prevent it from shifting during drilling. For added stability, clamp the jig and workpiece to your workbench.


Figure 5.1: A user operating the FTVOGUE dowelling jig, guiding a power drill to create a precise hole in a wooden board.

4. Borra hålen: Insert your drill bit into the guide bushing. Start the drill and slowly plunge the bit into the wood until the desired depth is reached. Withdraw the drill bit while it is still spinning to clear chips.


Figure 5.2: Close-up of the dowelling jig in action, showing the drill bit accurately guided into the wood, ensuring a straight and clean hole.

5. Repeat for Mating Piece: For joining two pieces of wood, repeat the process on the second piece, ensuring the jig is aligned correctly to match the holes on the first piece.
6. Testpassform: Before applying glue, test fit your dowel pins into the drilled holes to ensure proper alignment and fit.

6. Underhåll

To ensure the longevity and continued accuracy of your dowelling jig, follow these maintenance guidelines:

• Rengöring: After each use, wipe down the jig with a dry cloth to remove sawdust and debris. Do not use harsh chemicals that could damage the plastic.
• Inspektion: Periodically inspect the drill guide bushings for wear or damage. Ensure all screws are tight.
• Lagring: Store the jig in a clean, dry place away from direct sunlight and extreme temperatures.

7. Felsökning

If you encounter issues while using your dowelling jig, consider the following:

• Inaccurate Holes:
  • Ensure the jig's fence is securely tightened and correctly aligned with the workpiece edge.
  • Verify the workpiece is clamped firmly and does not shift during drilling.
  • Check that the drill bit is sharp and the correct size for the bushing.
• Jig Slipping:
  • Apply firm, consistent pressure to the jig during drilling.
  • Använd clamps to secure both the jig and the workpiece to a stable surface.
• Svårighetsgrad vid borrning:
  • Ensure your drill bit is sharp. Dull bits require more force and can lead to inaccurate holes.
  • Do not force the drill. Allow the bit to do the work.

8. Specifikationer

9. Garantiinformation

This FTVOGUE product is covered by the manufacturer's standard warranty. For specific details regarding warranty coverage, duration, and terms, please refer to the documentation included with your purchase or visit the official FTVOGUE webwebbplats. Spara ditt inköpsbevis för eventuella garantianspråk.
