Acogedor HRD-787 Portable Full Band Radio Instruction Manual

Introduktion

This manual provides detailed instructions for the safe and efficient operation of your Acogedor HRD-787 Portable Full Band Radio. Please read this manual thoroughly before using the device and retain it for future reference. The HRD-787 is a versatile multi-band radio featuring FM, VHF, AM, SW, and WB reception, Bluetooth connectivity, and memory card playback, designed for both indoor and outdoor use.

Image: The Acogedor HRD-787 Portable Full Band Radio, showcasindess kompakta design och användargränssnitt.

Paketets innehåll

Kontrollera vid uppackning att alla artiklar som anges nedan finns med och är i gott skick:

• 1 x Full Band Radio (HRD-787)
• 1 x hörlurar
• 2 x Eartips
• 1 x förvaringsväska
• 1 x Snodd
• 1 x Laddkabel
• 1 x Bruksanvisning (detta dokument)
• 1 x APP Instruction Manual

Image: The Acogedor HRD-787 radio displayed with its complete set of accessories, including earphones, eartips, a storage bag, a lanyard, and a charging cable.

Produkt överview

The Acogedor HRD-787 is a compact and versatile portable radio designed for a wide range of listening experiences. Key features include:

• Full Band Reception: Supports FM (64-108MHz), VHF (30.000-199.975MHz), AM (520-1710KHz), SW (4.750-21.850MHz), and WB (162.400-162.550MHz).
• Bluetooth 5.0-anslutning: För trådlös ljudströmning från kompatibla enheter.
• Uppspelning av minneskort: Supports MP3, WAV, WMA formats with up to 256GB capacity (card not included).
• Ljud av hög kvalitet: Features a 40mm speaker with 3W output for clear sound.
• SOS-larmfunktion: För nödsituationer.
• Inbyggd ficklampa: Ger belysning vid behov.
• Lång batteritid: Integrated 1000mAh lithium battery.
• APP Remote Operation: Control the radio via a smartphone application.
• Intuitiva kontroller: Easy-to-use buttons for tuning and volume.
• Bakgrundsbelysningsskärm: Color-coded backlights for different modes (Green for FM/VHF, Color for AM, Yellow for SW, Red for WB, Blue for Bluetooth, Light Blue for Memory Card).

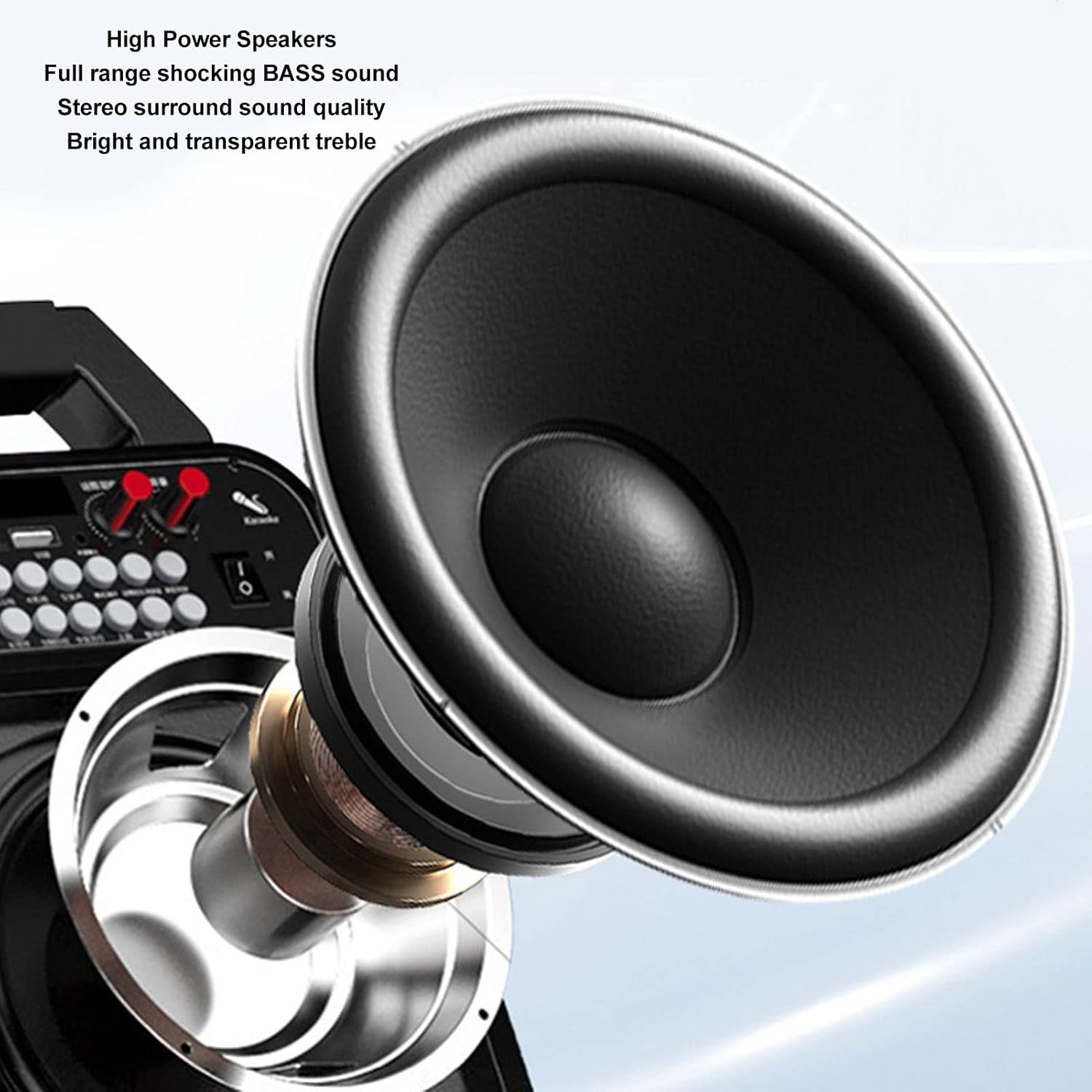

Bild: En detaljerad view of the high-power speaker, highlighting the full-range shocking bass sound and stereo surround sound quality of the HRD-787 radio.

Inställning

1. Första laddningen

Before first use, fully charge the radio's built-in 1000mAh lithium battery. Connect the provided charging cable to the radio's charging port and a standard USB power adapter (not included). The charging indicator will show the charging status. A full charge typically takes a few hours.

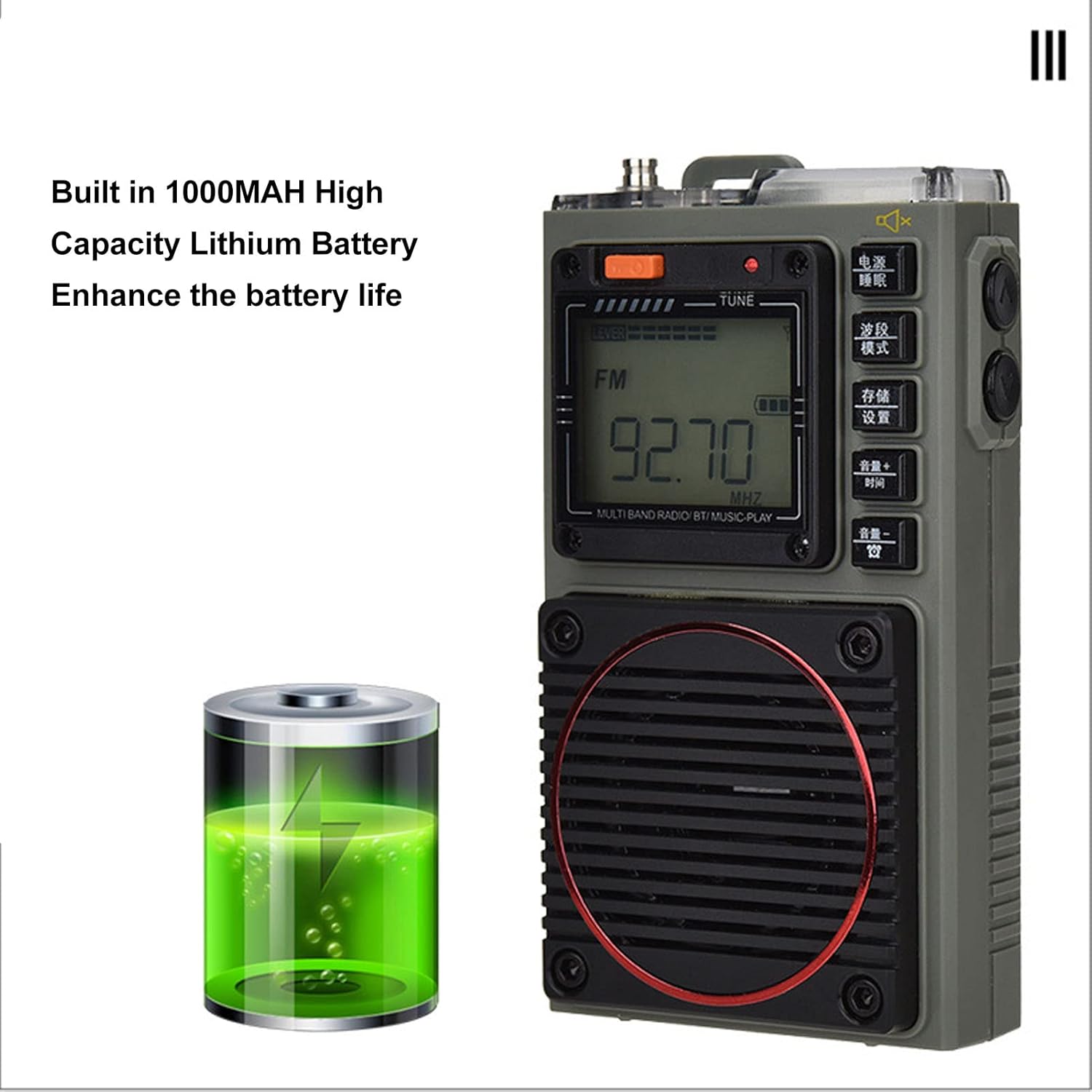

Image: The Acogedor HRD-787 radio is shown alongside a visual representation of its internal 1000mAh high-capacity lithium battery, emphasizing its long battery life.

2. Slå på / av

För att slå på radion, tryck och håll in knappen Driva button (usually located on the top or side). To power off, press and hold the same button again.

3. Sätta i ett minneskort (valfritt)

If you wish to use the memory card playback feature, insert a compatible memory card (up to 256GB, formatted to FAT32) into the designated slot. Ensure the card is inserted correctly until it clicks into place.

Bruksanvisning

1. Basic Key Operations

Bild: En detaljerad view of the Acogedor HRD-787 radio's control buttons, highlighting their clear labeling for easy operation of radio tuning and volume adjustments.

• Strömknapp: Tryck och håll för att slå på eller stänga av radion.
• BAND/MOD. Button: Short press to cycle through radio bands (FM, VHF, AM, SW, WB) or switch to Bluetooth/Memory Card mode.
• MEMO/SET-knapp: Used for saving radio stations or accessing settings.
• VOLYM+/TID-knapp: Short press to increase volume. Long press for time settings (if applicable).
• VOL-/LOCK Button: Short press to decrease volume. Long press to lock/unlock buttons.
• TUNE Knob/Buttons: Use the tuning knob or dedicated tuning buttons (if present) to adjust frequency.

2. Radio Tuning

1. Välj band: Tryck på BAND/MOD. button to select your desired frequency band (FM, VHF, AM, SW, WB). The display backlight color will change accordingly.
2. Automatisk skanning: I radioläge, tryck länge på MINNESPÄCKE/STÄLL IN button to initiate an automatic scan for available stations. The radio will save found stations automatically.
3. Manuell inställning: Använd STÄLLA IN knob or the frequency adjustment buttons (if available) to manually tune to a specific frequency.
4. Återkalla sparade stationer: Use the tuning buttons or a dedicated preset button (if available) to cycle through saved stations.

3. Bluetooth-uppspelning

1. Gå in i Bluetooth-läge: Tryck på BAND/MOD. button until "BT" or "Bluetooth" appears on the display, and the backlight turns blue. The radio will enter pairing mode.
2. Parning: On your mobile device, enable Bluetooth and search for "HRD-787" (or similar device name). Select it to pair. A confirmation sound will indicate successful pairing.
3. Uppspelning: Once paired, you can play audio from your device through the radio's speaker. Use your device or the radio's volume controls.

4. Uppspelning från minneskort

Image: The Acogedor HRD-787 radio's display shows a radio frequency, illustrating its capability for memory card playback of MP3, WAV, and WMA formats.

1. Sätt i minneskort: Ensure a memory card with MP3, WAV, or WMA files is inserted into the slot.
2. Enter Memory Card Mode: Tryck på BAND/MOD. button until the display indicates memory card playback (e.g., "CARD" or a music icon), and the backlight turns light blue.
3. Uppspelningskontroller: Use the radio's playback controls (e.g., Play/Pause, Next/Previous Track buttons, if available) to manage your music.

5. SOS-larmfunktion

In an emergency, activate the SOS alarm by pressing and holding the dedicated SOS button (if present) or a combination of buttons as indicated on the device. This will emit a loud alarm sound and activate the flashlight for signaling.

6. Ficklampans användning

To turn on the built-in flashlight, locate the flashlight button or switch (often on the side or top). Press it once to turn on, and again to turn off.

7. Earphone Output

Bild: En närbild view of the Acogedor HRD-787 radio, highlighting the earphone output jack for private listening and the integrated flashlight.

For private listening, plug the included earphones into the 3.5mm earphone jack located on the side of the radio. The internal speaker will automatically mute when earphones are connected.

8. APP Remote Operation

Image: A smartphone screen shows the dedicated application for remote control of the Acogedor HRD-787 radio, allowing users to select stations and change modes wirelessly.

Download the official Acogedor HRD-787 control application from your smartphone's app store. Follow the instructions in the separate APP Instruction Manual to pair your radio with the app. This allows for remote control of station selection, mode switching, and other functions.

Underhåll

• Rengöring: Use a soft, dry cloth to clean the radio's exterior. Do not use abrasive cleaners, solvents, or strong chemicals, as these can damage the finish.
• Lagring: När radion inte används under längre perioder, förvara den på en sval, torr plats, borta från direkt solljus och extrema temperaturer.
• Batteriomsorg: To prolong battery life, avoid fully discharging the battery frequently. Recharge the radio regularly, even if not in active use, to maintain battery health.
• Vattentålighet: The HRD-787 is not waterproof. Avoid exposing it to rain, splashes, or high humidity.

Felsökning

Specifikationer

Garanti och support

Acogedor products are designed for reliability and performance. For information regarding warranty coverage, technical support, or service inquiries, please refer to the warranty card included with your product or visit the official Acogedor website. Please have your model number (HRD-787) and purchase details ready when contacting support.
