Lixada GPS Bait Boat User Manual

1. Introduktion

Thank you for choosing the Lixada GPS Bait Boat. This advanced fishing tool is designed to enhance your fishing experience by providing precise bait delivery and intelligent navigation features. Please read this manual thoroughly before operating the device to ensure safe and optimal performance.

Nyckelfunktioner inkluderar:

• GPS-positionering: Set up to 16 arbitrary positioning points for accurate bait delivery and return.
• Automatisk retur: The boat automatically returns to its starting point after 15 seconds in case of signal loss or low battery.
• Long Range Remote Control: Operate the boat wirelessly within a range of 400-500 meters.
• Large Bait Capacity: A spacious bait container can hold approximately 2 kg (4.4 lbs) of bait.
• Dual Motors & Propellers: Ensures stable and powerful navigation.
• Night Fishing Lights: Equipped with one white front light and two blue rear lights for visibility during night fishing.
• LCD Display Remote: Provides real-time information such as battery power, distance, compass, position, and light status.

2. Säkerhetsinstruktioner

VARNING: Underlåtenhet att följa dessa säkerhetsinstruktioner kan leda till personskador eller skador på produkten.

• Always operate the bait boat in open water, away from swimmers, other boats, and obstacles.
• Do not operate the boat in strong winds or currents that may exceed its control capabilities.
• Ensure all battery compartments are securely sealed before placing the boat in water.
• Förvara fjärrkontrollen torr och borta från vatten.
• Do not attempt to retrieve the boat by swimming if it gets stuck or loses power far from shore.
• Supervise children closely if they are operating or near the bait boat.
• Use only the provided charger and batteries. Improper charging or battery use can lead to fire or explosion.
• Do not disassemble or modify the bait boat or remote control.
• Kassera batterier enligt lokala föreskrifter.

3. Paketets innehåll

Kontrollera paketet noggrant för att säkerställa att alla artiklar finns med:

• 1 x Bait Boat (with rechargeable battery installed)
• 1 x Remote Control (with 4 AA batteries installed)
• 1 x Antenn
• 1 x Användarmanual
• 1 x Laddare
• 2 x reservpropellrar
• 1 x förvaringsväska

4. Produkt överview

Familiarize yourself with the main components of your Lixada GPS Bait Boat:

Bild 4.1: Labeled diagram showing the Bait Container, Blue Night Lights, Carry Handle, Antenna, ON/OFF Switch, Double Motor & Double Propellers, Battery Indicator, Battery House, and Front Night Light.

Bild 4.2: Uppifrån och ner view of the bait boat and its remote control unit, illustrating their relative sizes and design.

5. Inställning

5.1. Charging the Bait Boat Battery

The bait boat is powered by a rechargeable battery (5200mAh or 10000mAh, depending on your model). Ensure the battery is fully charged before first use.

1. Locate the battery compartment on the bait boat.
2. Connect the charger to the boat's charging port.
3. Anslut laddaren till ett vanligt vägguttag.
4. Laddningsindikatorn visar laddningsstatus.
5. Charging times are approximately 10 hours for the 5200mAh battery and 15 hours for the 10000mAh battery.
6. När den är fulladdad kopplar du bort laddaren.

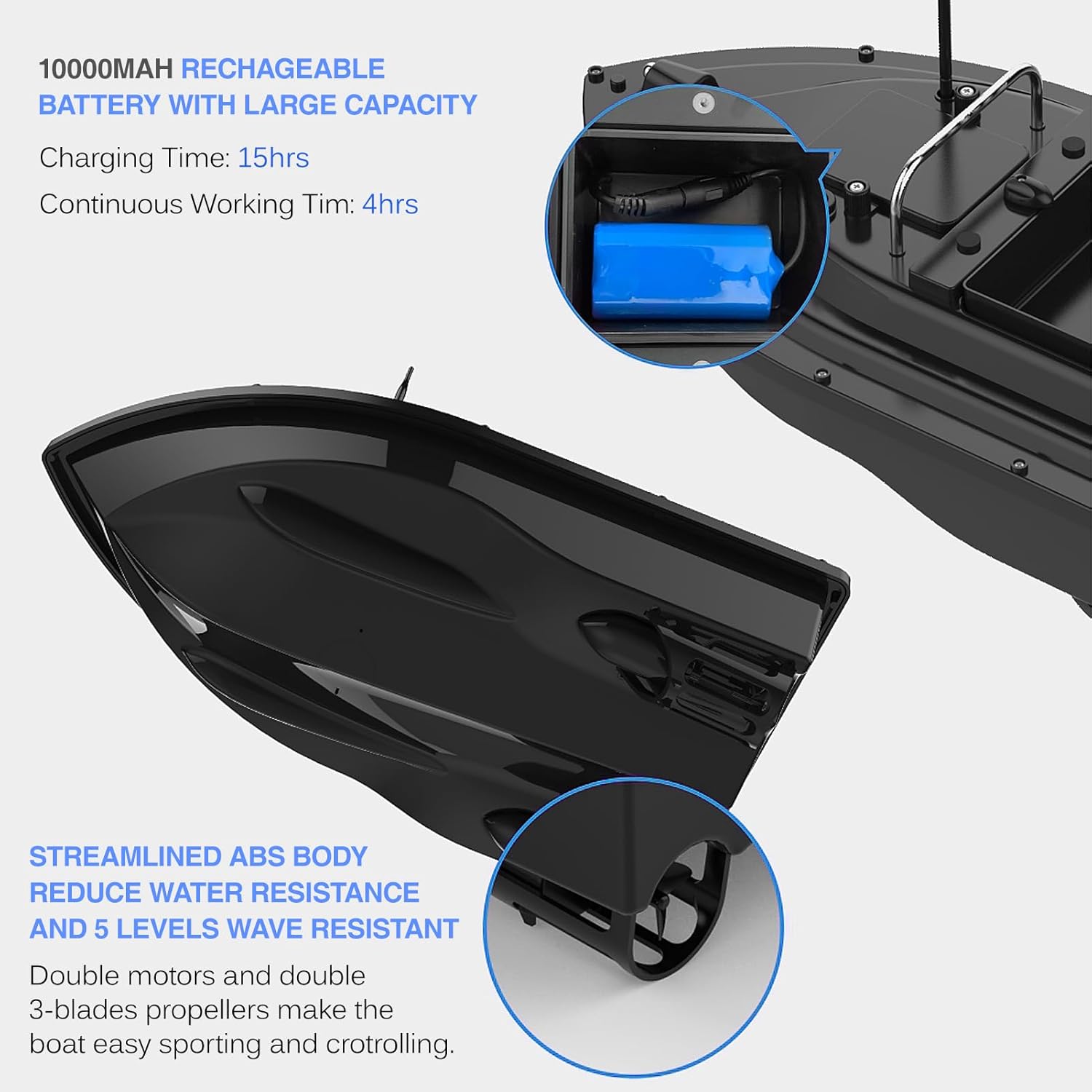

Bild 5.1: Image showing the battery compartment of the bait boat and its streamlined ABS body design, which reduces water resistance.

5.2. Installera batterier i fjärrkontrollen

The remote control requires 4 AA batteries (included).

1. Öppna batteriluckan på baksidan av fjärrkontrollen.
2. Sätt i 4 AA-batterier och se till att polerna är korrekta (+/-).
3. Stäng batteriluckan ordentligt.

5.3. Fästa antennen

Screw the antenna firmly into the designated port on the bait boat. Ensure it is upright for optimal signal reception.

6. Bruksanvisning

6.1. Slå på / av

1. Ström på: First, turn on the remote control, then turn on the bait boat using its ON/OFF switch.
2. Stäng av: First, turn off the bait boat, then turn off the remote control.

6.2. GPS Positioning Function

The GPS function allows you to set and recall up to 16 arbitrary positioning points.

1. Setting Points: Navigate the boat to your desired location. On the remote control, follow the instructions to save the current position as a GPS point (e.g., Point 1, Point 2, etc.).
2. Navigating to Points: Select a saved GPS point on the remote control, and the boat will automatically navigate to that location.
3. Automatisk retur: If the boat loses signal or its battery level becomes critically low, it will automatically return to its designated home point (usually the first saved GPS point) after 15 seconds.

Bild 6.1: Illustration of the GPS positioning function, showing the bait boat navigating between 16 arbitrary points set via the remote control, with a remote range of 400-500 meters.

6.3. Remote Control Display and Functions

The LCD screen on the remote control provides vital operational information:

• Batterieffekt: Displays the remaining battery level of both the boat and the remote.
• Avstånd: Shows the distance of the boat from the remote control.
• Kompass: Indicates the boat's heading.
• Placera: Shows the current GPS coordinates or selected GPS point.
• Ljusstatus: Indicates if the night lights are on or off.

The remote also features fixed-speed cruise control for consistent movement.

6.4. Bait Release

The large bait container can hold up to 2 kg (4.4 lbs) of bait.

1. Load the bait into the container.
2. Navigate the boat to your desired baiting location.
3. Press the designated bait release button on the remote control to open the container and drop the bait.

6.5. Navigation and Propulsion

The boat is equipped with dual motors and dual propellers for efficient and stable movement.

Bild 6.2: Närbild view of the bait boat's underside, highlighting the double propellers and the powerful, silent motor system that ensures smooth and controlled movement.

6.6. Night Fishing Lights

Activate the front white light and two rear blue lights via the remote control for improved visibility during low-light conditions or night fishing.

Bild 6.3: Överview of the bait boat's main features, including Fixed Speed Cruise, Convenient Night Lights, 540 Yards Wireless Remote Control, Automatic Return For Low Power, Double Motor & Double Propellers, GPS Positioning Function, 5200mAh/10000mAh (optional) Rechargeable Battery, and 4.4lb Bait Bearing Capacity.

7. Underhåll

• Rengöring: After each use, wipe down the boat with a soft, damp cloth to remove any water, dirt, or bait residue. Ensure all compartments are dry before storage.
• Batteriomsorg: For long-term storage, charge the bait boat battery to approximately 50-60% and store it in a cool, dry place. Remove AA batteries from the remote control if not used for extended periods.
• Propellerinspektion: Regularly check the propellers for any fishing line, weeds, or debris that may hinder their operation. Clean them carefully if necessary.
• Lagring: Store the bait boat and remote control in the provided storage bag in a dry, cool environment, away from direct sunlight.

8. Felsökning

9. Specifikationer
