Introduktion
This manual provides detailed instructions for the installation, operation, and maintenance of the IXITAB STC-3008, STC-3018, and STC-3028 series of digital temperature and humidity controllers. These devices are designed for precise control in various applications, including aquariums, terrariums, incubators, and industrial temperature/humidity control systems.
Produktvarianter
- STC-3008: Dual Digital Temperature Controller with two temperature probes.
- STC-3018: Dual Digital Temperature Controller with two temperature probes.
- STC-3028: Digital Temperature and Humidity Controller with one combined temperature and humidity sensor.
Nyckelfunktioner
- Dual display for simultaneous monitoring of two temperatures or temperature and humidity.
- Two independent relay outputs for controlling heating/cooling or humidification/dehumidification devices.
- Wide range of power supply options (AC 110V/220V, DC 12V/24V) depending on the model.
- High precision sensors for accurate readings.
- User-friendly interface for setting parameters.
Säkerhetsföreskrifter
För att säkerställa säker drift och förhindra skador på enheten, var vänlig och följ följande försiktighetsåtgärder:
- Koppla alltid bort strömmen innan du utför några ledningar eller underhåll.
- Se till att strömförsörjningen voltage matches the requirements of your specific controller model.
- Strictly distinguish the interface of the relay, sensor, and power connections to avoid short circuits or damage.
- Se till att alla ledningsanslutningar är säkra och ordentligt isolerade.
- Keep the sensor and power wires separate and maintain a proper distance to prevent interference.
- Utsätt inte enheten för vatten eller överdriven fukt.
Bild: Överst view of the STC-3018 controller showing the display, buttons, and a label with wiring instructions and safety notes. The label indicates power supply options (110-220VAC, 12V, 24V) and relay outputs (10A/220VAC). A temperature probe is connected to the device.
Produkt överview
Komponenter
- Main Controller Unit (with digital displays and control buttons)
- Temperature Sensor (for STC-3008/3018 models)
- Temperature and Humidity Sensor (for STC-3028 model)

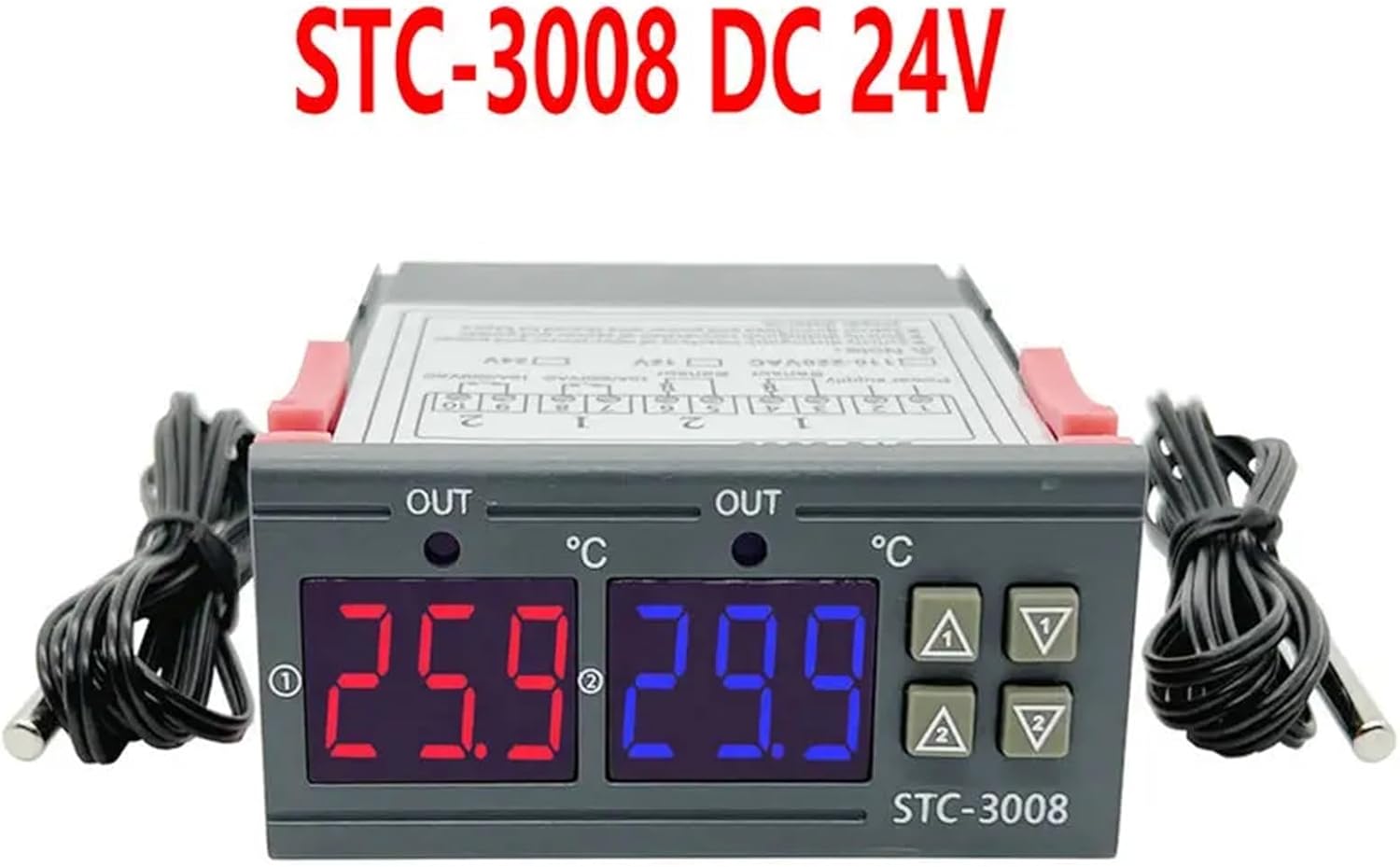

Bild: Fram view of the STC-3008 DC 24V model, featuring two digital displays (red and blue) showing temperature readings, and two connected temperature probes. The model name "STC-3008" is visible on the front panel.
Image: A collage showing three different models: STC-3018 (top left), STC-3008 (top right and bottom left), and STC-3028 (bottom right). Each model is shown with its respective sensor, highlighting the visual differences and sensor types (temperature probe for 3008/3018, combined temperature/humidity sensor for 3028).
Bild: En närbild view of the STC-3028 model, showcasing its dual digital display for temperature and humidity, along with the connected combined temperature and humidity sensor.
Specifikationer
| Parameter | Värde |
|---|---|
| Modell | STC-3008, STC-3018, STC-3028 |
| Strömförsörjning | AC 110V/220V, DC 12V/24V (model dependent) |
| Temperaturmätområde | -50°C till 110°C (-58°F till 230°F) |
| Humidity Measurement Range (STC-3028) | 0% RH till 99% RH |
| Utgångsreläkapacitet | 10A/220VAC |
| Sensortyp | NTC sensor (temperature), integrated sensor (humidity for STC-3028) |
| Mått | Approx. 1.18 x 0.79 x 0.39 inches (main unit) |
| Objektets vikt | Cirka. 1.76 uns |
| Ursprungsland | Kina |
Installation och kabeldragning
Viktig: Ensure power is disconnected before performing any wiring to prevent electric shock or damage to the device.
Kopplingsschema
Image: Detailed wiring diagram for the STC-3018 model. It illustrates connections for power supply (110V/AC220V, 12V, 24V), two sensor inputs, and two relay outputs (10A/220VAC). Examples of connected loads like a refrigerator, fan, and water heater are shown.
Ledningssteg
- Strömförsörjning: Connect the appropriate power supply (AC 110V/220V or DC 12V/24V) to terminals 1 and 2. Verify that the voltage matches your specific controller model.
- Sensorer: Connect the temperature sensors to terminals 3 and 4, and 5 and 6 (for STC-3008/3018). For the STC-3028, connect the combined temperature/humidity sensor to its designated terminals.
- Utgångsreläer: Connect your heating/cooling or humidification/dehumidification devices to terminals 7 and 8 (Relay 1) and 9 and 10 (Relay 2). These are dry contacts, meaning they act as switches, and your load will require its own power source.
- Montering: The controller is designed for panel mounting. Insert the unit into a suitable cutout and secure it using the integrated clips on the sides.
Bruksanvisning
Knappfunktioner
- Set-knapp: Används för att gå in i parameterinställningsläge och bekräfta val.
- Uppåtknapp (▲): Increases values, navigates through menu options.
- Nedåtknapp (▼): Decreases values, navigates through menu options.
- Rst Button: Kort tryck till view current settings; long press (3 seconds) to reset to factory default settings.
Temperature/Humidity Setting
Image: A visual guide demonstrating the temperature and humidity setting process on the STC-3028 model. It shows how to set starting and stopping values for both temperature (heating/cooling) and humidity (humidification/dehumidification) using the control buttons.
- Setting Starting Temperature/Humidity: Tryck länge på Upp (▲) button for 3 seconds. The starting value on the display will flash. Use the Upp (▲) or Ner (▼) buttons to adjust to your desired starting value. Press the Uppsättning för att bekräfta och avsluta.
- Setting Stopping Temperature/Humidity: Tryck länge på Ner (▼) button for 3 seconds. The stopping value on the display will flash. Use the Upp (▲) or Ner (▼) buttons to adjust to your desired stopping value. Press the Uppsättning för att bekräfta och avsluta.
- Återställ till fabriksinställningar: Tryck länge på Rs button for 3 seconds until the display shows "888" or similar indication of reset.
The controller will automatically activate or deactivate the connected relays based on the set starting and stopping values to maintain the desired temperature or humidity range. For temperature control, if the starting temperature is lower than the stopping temperature, it operates in heating mode. If the starting temperature is higher than the stopping temperature, it operates in cooling mode. Similar logic applies to humidity control for humidification/dehumidification.
Underhåll
Proper maintenance ensures the longevity and accuracy of your controller:
- Håll enheten ren och fri från damm och skräp. Använd en mjuk, torr trasa för rengöring.
- Säkerställ tillräcklig ventilation runt enheten för att förhindra överhettning.
- Kontrollera regelbundet alla kabelanslutningar för att säkerställa att de är säkra och fria från korrosion.
- Avoid exposing the unit or sensors to extreme temperatures, high humidity, or corrosive environments outside their specified operating ranges.
- Do not attempt to disassemble the unit beyond what is described in this manual.
Felsökning
If you encounter issues with your controller, refer to the table below for common problems and solutions:
| Problem | Möjlig orsak | Lösning |
|---|---|---|
| Displayen fungerar inte | No power, incorrect wiring, faulty unit. | Check power supply connections. Verify wiring against the diagram. If problem persists, contact support. |
| Reläet växlar inte | Incorrect temperature/humidity settings, faulty relay, load issue. | Review your set starting and stopping values. Check the wiring to the load device. Test the load device independently. |
| Felaktiga avläsningar | Sensor damaged, sensor not properly placed, environmental interference. | Inspect sensor for physical damage. Ensure sensor is in the correct environment and not obstructed. Avoid placing sensor near heat sources or drafts. |
| "LLL" or "HHH" on display | Sensor open circuit (LLL) or short circuit (HHH). | Check sensor connection for looseness or damage. Replace sensor if it appears faulty. |
| Display shows "--- " | Sensor not connected or faulty. | Ensure sensor is securely connected. Replace sensor if necessary. |
Garanti och support
For warranty information or technical support regarding your IXITAB STC-3008, STC-3018, or STC-3028 controller, please refer to the documentation provided with your product at the time of purchase or contact IXITAB customer service through the platform where you purchased the item.
When contacting support, please be prepared to provide your product model number (STC-3008, STC-3018, or STC-3028) and details of your purchase.
