Daewoo 32-inch Soundbeam Bluetooth HDMI Touch Panel Soundbar Instruction Manual

1. Introduktion

This manual provides essential information for the proper installation, operation, and maintenance of your Daewoo 32-inch Soundbeam Bluetooth HDMI Touch Panel Soundbar. Please read this manual thoroughly before using the product and retain it for future reference.

Image 1: Daewoo Soundbar positioned below a television.

2. Produktfunktioner

• Förbättrat ljud: Experience stereo audio output with 30 Watts maximum speaker output.
• Mångsidig anslutning: Features Bluetooth and HDMI (ARC) connectivity for various devices.
• Intuitiv kontroll: Equipped with a responsive touch panel for easy operation.
• Snygg design: A 32-inch soundbar in black, designed to complement any home entertainment setup.
• Multifunktionell användning: Ideal for gaming consoles, computers, televisions, home theater, TV viewing, and streaming.

Image 2: Soundbar enhancing audio experience with visual sound waves.

3. Paketets innehåll

Vid uppackning, se till att alla artiklar som anges nedan finns med och är i gott skick:

• Daewoo Soundbar (DW Soundbeam)
• Fjärrkontroll
• Strömkabel
• Användarmanual (detta dokument)

Note: Additional cables for specific connections (e.g., HDMI cable, AUX cable) may need to be purchased separately if not included.

4. Inställning

4.1 Placering

Place the soundbar on a stable, flat surface directly in front of your television. Ensure there are no obstructions in front of the soundbar to allow for optimal sound projection. The soundbar can also be wall-mounted using appropriate hardware (not included).

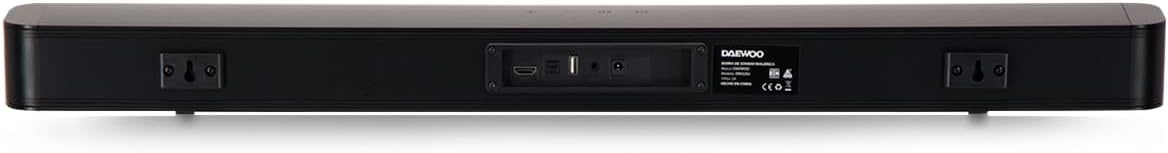

Bild 3: Bak view of the soundbar, highlighting wall-mounting options.

4.2 Anslutningar

The Daewoo Soundbeam offers multiple connectivity options:

• HDMI (ARC): For the best audio quality and control, connect an HDMI cable (not included) from the HDMI ARC port on your TV to the HDMI ARC port on the soundbar.
• Optisk: Connect an optical audio cable (not included) from your TV's optical output to the soundbar's optical input.
• AUX (3.5 mm): Use a 3.5mm audio cable (not included) to connect to devices with an AUX output.
• USB: Insert a USB drive (not included) to play audio files direkt.
• Bluetooth: For wireless audio streaming, pair your device via Bluetooth.

Bild 4: Detaljerad view of the soundbar's rear connection panel.

4.3 Strömanslutning

Connect the power cable to the DC IN port on the soundbar and then plug it into a wall outlet.

5. Bruksanvisning

5.1 Ström på/av

Press the power button on the soundbar's touch panel or the remote control to turn the unit on or off.

Image 5: User interacting with the soundbar's touch controls.

5.2 Val av källa

Press the 'Source' button on the remote control or the 'Mode' button on the touch panel to cycle through input sources (HDMI, Optical, AUX, USB, Bluetooth).

5.3 Volymkontroll

Use the '+' and '-' buttons on the soundbar or remote control to adjust the volume. The soundbar features a touch panel for volume adjustment.

Image 6: Close-up of the soundbar's touch-sensitive control panel.

5.4 Bluetooth-parning

1. Slå på soundbaren.
2. Select Bluetooth mode using the 'Source' or 'Mode' button. The soundbar will enter pairing mode, indicated by a flashing LED.
3. On your mobile device, enable Bluetooth and search for 'DW Soundbeam'.
4. Select 'DW Soundbeam' to pair. Once connected, the LED indicator will stop flashing.

6. Underhåll

• Rengöring: Använd en mjuk, torr trasa för att rengöra ytan på soundbar-högtalaren. Använd inte flytande rengöringsmedel eller aerosoler.
• Lagring: If not in use for an extended period, unplug the soundbar and store it in a cool, dry place.
• Undvik fukt: Keep the soundbar away from water and high humidity to prevent damage.

7. Felsökning

• Ingen ström: Ensure the power cable is securely connected to both the soundbar and the power outlet. Check if the outlet is functioning.
• Inget ljud:
  • Kontrollera att rätt ingångskälla är vald på soundbar-högtalaren.
  • Check the volume level on both the soundbar and the connected device.
  • Ensure all audio cables are properly connected.
  • If using optical or HDMI ARC, check your TV's audio output settings to ensure it's set to the correct external audio output.
• Bluetooth-kopplingsproblem:
  • Se till att soundbar-högtalaren är i Bluetooth-parkopplingsläge.
  • Se till att din enhets Bluetooth är aktiverat och inom räckhåll (upp till 10 meter).
  • Försök att ta bort parkopplingen och parkoppla enheten igen.
• Fjärrkontrollen fungerar inte: Byt batterier i fjärrkontrollen. Se till att det inte finns några hinder mellan fjärrkontrollen och soundbar-högtalaren.

8. Specifikationer

9. Garanti och support

For warranty information and customer support, please refer to the warranty card included in your product packaging or visit the official Daewoo webwebbplatsen. Spara ditt inköpskvitto som köpbevis.
