DEERC M66 1080P Drone User Manual

Introduktion

This manual provides essential instructions for the safe operation, setup, and maintenance of your DEERC M66 1080P Drone. Designed for beginners, teenagers, and families, this drone features a 4.3-inch screen remote control, a 1080P camera for close-up aerial photography, a brushless motor for stable flight, and 5G transmission for a smooth live view. Please read this manual thoroughly before operating the drone to ensure proper use and to prevent damage or injury.

Säkerhetsinformation

VARNING: Får endast användas under direkt uppsikt av vuxen.

• Använd alltid drönaren i öppna områden, borta från människor, djur och hinder.
• Ensure all propellers are securely attached before flight.
• Do not fly near airports or restricted airspace.
• Undvik att flyga i starka vindar eller ogynnsamma väderförhållanden.
• Håll fingrar och hår borta från roterande propellrar.
• Do not touch the motors immediately after flight as they may be hot.
• Always turn off the drone and remote control when not in use.
• Follow all local regulations and laws regarding drone operation.

Paketets innehåll

Kontrollera att alla artiklar som listas nedan ingår i ditt paket:

• 1 x DEERC M66 Drone
• 1 x Remote Control with 4.3-inch Screen
• 2 x Drone Batteries (Lithium-polymer)
• 4 x reservpropellrar
• 1 x USB-laddningskabel
• 1 x skruvmejsel
• 1 x minneskort
• 1 x Handväska
• Användarmanual (detta dokument)

Bild: A visual representation of all components included in the DEERC M66 drone package, laid out neatly. This includes the folded drone, the remote control, two batteries, spare propellers, a USB charging cable, a screwdriver, a memory card, and a carrying bag.

Inställning

1. Batteriinstallation och laddning

The DEERC M66 drone comes with two Lithium-polymer batteries, providing up to 40 minutes of total flight time. Ensure batteries are fully charged before each flight.

1. Drone Batteri: Insert the drone battery into the battery compartment on the rear of the drone until it clicks into place. To charge, connect the USB charging cable to the battery and a suitable USB power source (e.g., computer, USB adapter). The charging indicator will show the charging status.
2. Batteri för fjärrkontroll: The remote control requires 2 D batteries (not included). Open the battery compartment on the back of the remote control and insert the batteries, observing the correct polarity.

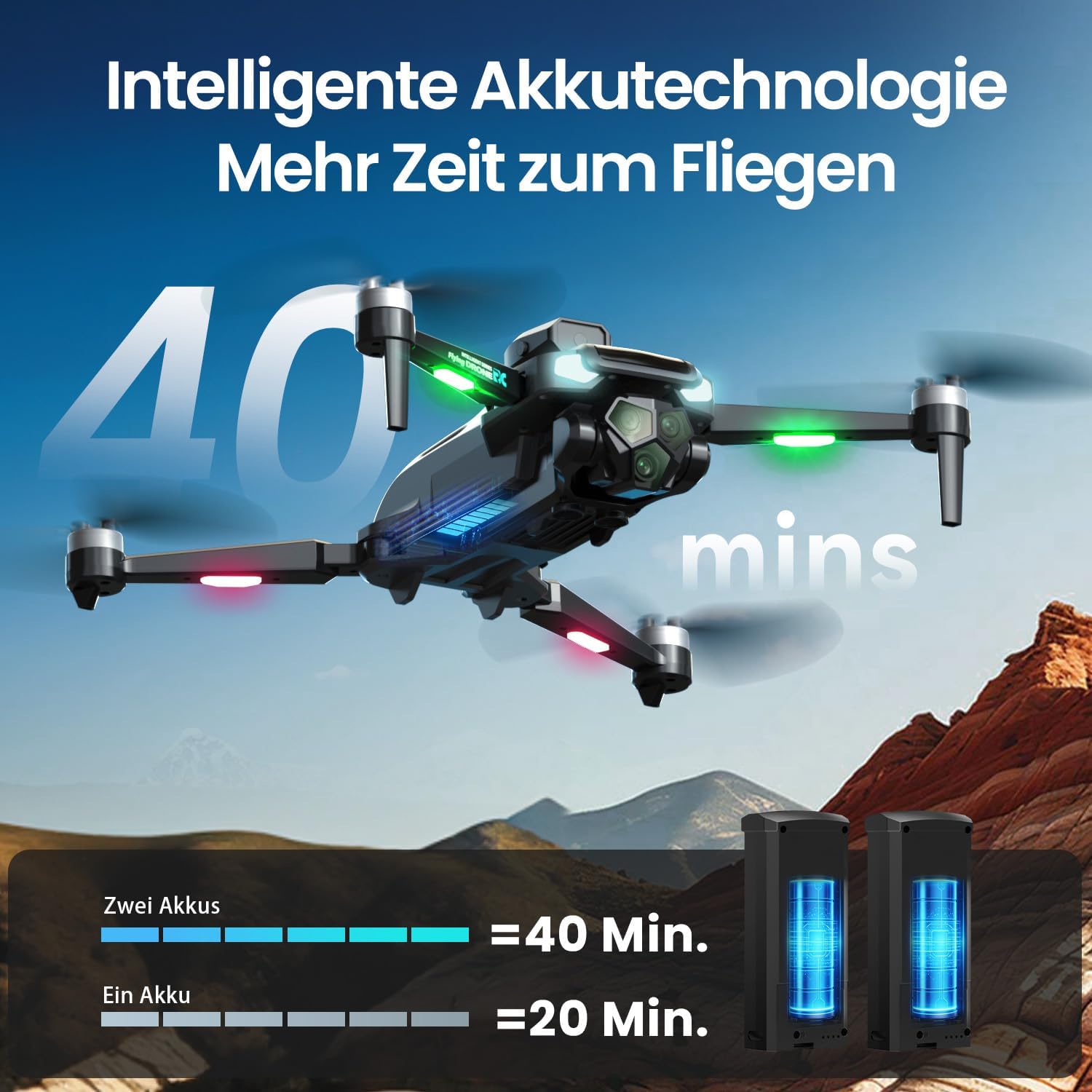

Bild: The DEERC M66 drone in flight, with an overlay indicating "40 mins" flight time. Below, two drone batteries are shown, illustrating that two batteries provide 40 minutes of flight, while one provides 20 minutes. This highlights the extended flight capability.

2. Propellerinstallation

The drone's propellers are designed for easy replacement. If a propeller is damaged, replace it with a spare from the package.

• Identify the correct propeller type (A or B) for each motor arm.
• Align the propeller with the motor shaft and press down firmly until it is securely attached.
• Ensure all propellers spin freely without obstruction.

3. Inställning av fjärrkontroll

The remote control features an integrated 4.3-inch screen, eliminating the need for a smartphone.

1. Unfold the remote control's screen and antennas.
2. Tryck på strömknappen för att slå på fjärrkontrollen.
3. Power on the drone. The remote control and drone will automatically pair. A successful connection will be indicated by a stable light on the drone and a live video feed on the remote's screen.

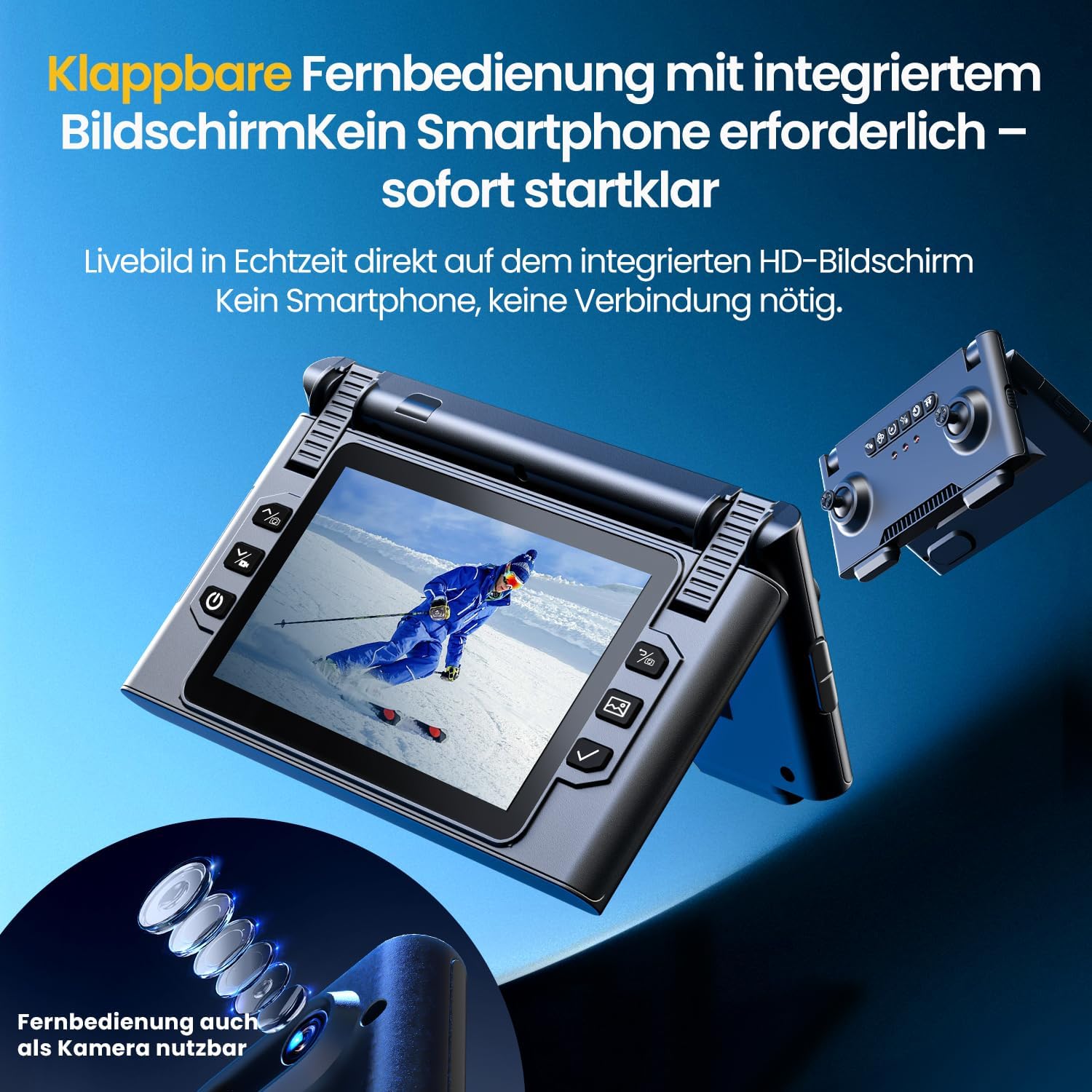

Bild: En närbild view of the DEERC M66 drone's foldable remote control, showcasing its integrated 4.3-inch HD screen. The screen displays a live feed, and the remote's buttons and joysticks are visible. This design allows for immediate flight without a smartphone connection.

Bruksanvisning

1. Grundläggande flygkontroller

• Start/landning med en knapptryckning: Press the dedicated button on the remote control for automatic takeoff or landing.
• Huvudlöst läge: Activate Headless Mode to simplify flight orientation. In this mode, the drone's front will always be the direction the remote control is facing, regardless of the drone's actual orientation.
• Nödstopp: Vid en nödsituation, tryck på nödstoppsknappen för att omedelbart stänga av strömmen till motorerna.

Bild: Three distinct panels illustrating beginner-friendly flight features. The first shows the drone taking off from a landing pad, representing one-button start and landing. The second depicts the drone in headless mode, with arrows indicating simplified directional control. The third shows the drone descending rapidly, symbolizing the emergency stop function.

2. Flight Modes and Tricks

• Hastighetsjustering: The drone offers 3 speed levels (Slow, Medium, Fast) to accommodate different skill levels and flying environments. Adjust the speed using the dedicated button on the remote control.
• 360° vändning: Perform impressive aerial stunts with a single button press. Ensure sufficient altitude and clear surroundings before attempting flips.

Bild: Two panels demonstrating advanced flight capabilities. The top panel shows the drone performing a 360-degree flip with a single button press, illustrating an aerial trick. The bottom panel displays three drones at different speeds (Slow, Medium, Fast), indicating the adjustable speed settings for varied flight experiences.

3. Kamerans användning och funktioner

The integrated 1080P camera is designed for clear close-up shots and everyday scenes.

• 1080P HD-kamera: Capture high-definition photos and videos. The camera features a 90° adjustable lens for flexible wide-angle shots.
• Gestkontroll: Initiate photo and video recording with simple hand gestures, making it easy to capture moments without touching the remote.
• 5G-överföring: Enjoy a stable live image feed on the remote control's screen up to approximately 100 meters, providing real-time visual feedback for precise control.

Bild: En detaljerad view of the DEERC M66 drone, highlighting its 1080P HD camera with a 90-degree adjustable lens. The image also shows a comparison between 1080P and 720P resolution, emphasizing the clarity of the 1080P camera for aerial views.

Bild: Two panels demonstrating gesture control. The top panel shows a person making a hand gesture to take a photo, indicated by a camera icon. The bottom panel shows another person making a different hand gesture to record a video, indicated by a video camera icon. This illustrates the ease of capturing media hands-free.

4. Obstacle Avoidance and Stability

• 360° hinderundvikning: The drone is equipped with 360° obstacle avoidance to help reduce collisions, making it safer for beginners.
• Optisk flödespositionering: Optical flow sensors ensure stable positioning at low altitudes, contributing to a calm and uniform flight experience, especially indoors or in confined outdoor spaces.
• Borstlös motor: The brushless motor provides quiet and stable flight performance, enhancing durability and efficiency.

Bild: The DEERC M66 drone flying near a rocky surface, with visual cues indicating obstacle avoidance sensors and stable flight. An inset shows a brushless motor, emphasizing its quiet and uniform operation. This image highlights the drone's stability features and collision prevention.

Underhåll

• Rengöring: Regularly clean the drone body, propellers, and camera lens with a soft, dry cloth. Avoid using liquids or solvents.
• Propellerbyte: Inspect propellers for damage before each flight. Replace any bent, cracked, or chipped propellers immediately using the provided screwdriver and spare propellers.
• Batteriomsorg: Store batteries in a cool, dry place. Do not overcharge or over-discharge batteries. If the drone will not be used for an extended period, charge batteries to approximately 50% before storage.
• Motorinspektion: Periodically check the brushless motors for any debris or obstructions. Ensure they spin freely.

Felsökning

Specifikationer

Garanti och support

For warranty information and technical support, please refer to the contact details provided with your purchase or visit the official DEERC webwebbplats. Spara ditt inköpsbevis för garantiärenden.

• Returpolicy: 30-day refund/replacement policy (as per Amazon.com.be).
• Tillverkare: DEERC
• Säljare: HOLYTON (fulfilled by Amazon)
