vidaXL Freestanding Ceramic Basin with Pedestal - Model 142999 Instruction Manual

1. Produkt överview

Thank you for choosing the vidaXL Freestanding Ceramic Basin with Pedestal. This elegant and modern basin is designed to complement any bathroom, toilet, or cloakroom. Crafted from glazed ceramic, it offers durability and ease of cleaning. This manual provides essential information for the safe installation, proper use, and maintenance of your new basin.

Notera: The faucet and drain are not included with this product and must be purchased separately.

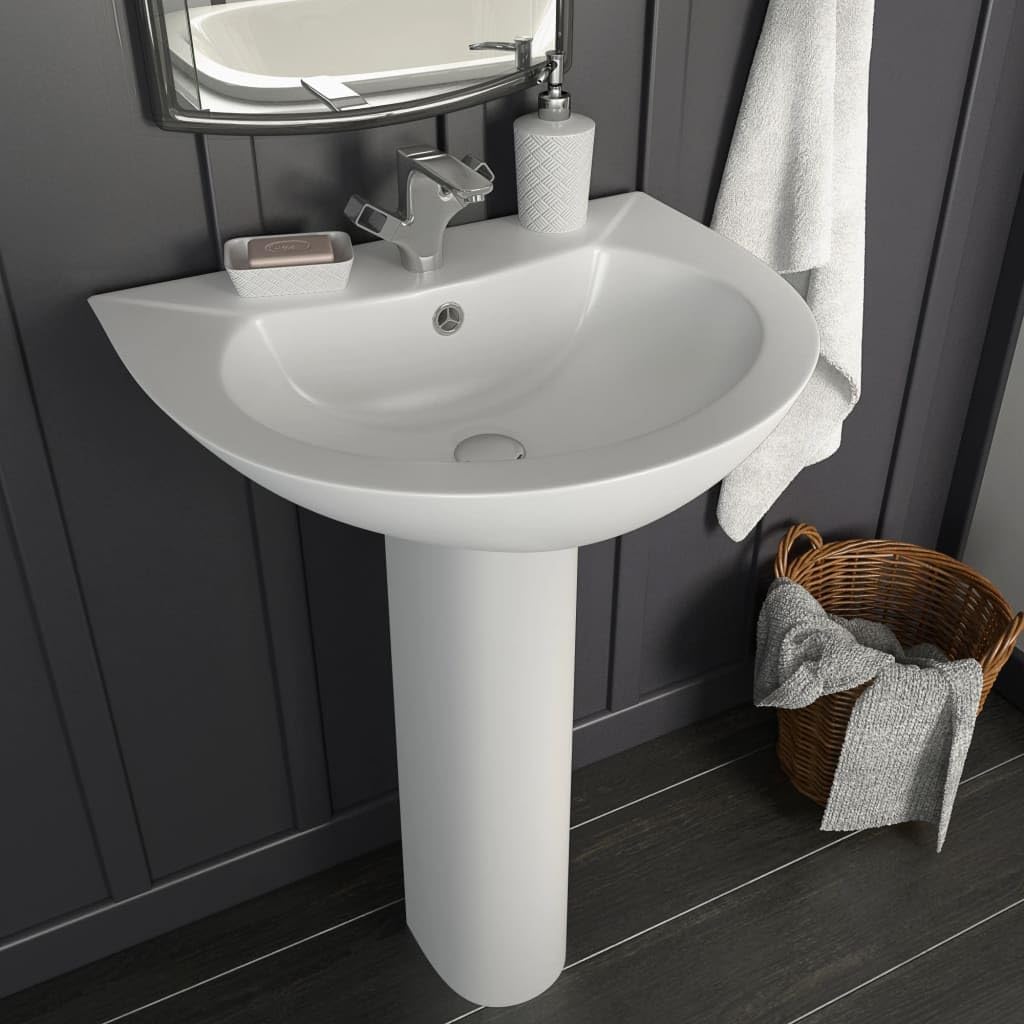

Figure 1: The vidaXL Freestanding Ceramic Basin with Pedestal in a bathroom setting.

2. Säkerhetsinformation

• Läs alla instruktioner noggrant före installation och användning.
• Hantera keramiska komponenter varsamt för att förhindra flisning eller brott.
• Ensure the installation surface is level and structurally sound to support the weight of the basin and pedestal.
• Professional installation by a qualified plumber is recommended to ensure proper water connections and drainage.
• Stäng alltid av huvudvattenförsörjningen innan du påbörjar något VVS-arbete.
• Comply with all local plumbing and building codes during installation.
• Do not use abrasive cleaners or harsh chemicals on the ceramic surface, as this may damage the glaze.

3. Paketets innehåll

Kontrollera att alla komponenter finns och är oskadade innan du fortsätter med installationen.

• 1 x Ceramic Basin
• 1 x Ceramic Pedestal

Note: Faucet, drain, and mounting hardware are not included.

4. Installation och installation

This section outlines the steps for installing your freestanding ceramic basin. Ensure you have all necessary tools and additional components (faucet, drain, sealant) before starting.

4.1 Nödvändiga verktyg (ingår ej):

• Justerbar skiftnyckel
• Skruvmejsel set
• Drill (if wall mounting is required for stability)
• Nivå
• Måttband
• Silicone sealant (bathroom grade)
• Skyddsglasögon och handskar

4.2 Installationssteg:

1. Förbered området: Ensure the installation area is clean, dry, and level. Turn off the main water supply.
2. Placera piedestalen: Carefully place the ceramic pedestal in the desired location. Ensure it is stable and level.
3. Placera B:etasin: Gently lower the ceramic basin onto the pedestal, aligning the drain hole and faucet hole with the corresponding openings. Ensure the basin sits securely on the pedestal.
4. Installera kran och avlopp: Install your chosen faucet into the 35 mm diameter faucet hole and the drain assembly into the 45 mm diameter drain hole. Follow the manufacturer's instructions for these components. Ensure all connections are watertight using appropriate seals and plumber's putty or silicone.
5. Anslut vattenförsörjning: Connect the hot and cold water supply lines to the faucet. Tighten all connections securely, but do not overtighten.
6. Anslut avlopp: Connect the drain assembly to your existing plumbing waste pipe. Ensure a tight, leak-free connection.
7. Tätning (valfritt men rekommenderas): Apply a bead of bathroom-grade silicone sealant around the base of the pedestal where it meets the floor, and where the basin meets the wall (if applicable) to prevent water ingress and provide additional stability.
8. Test för läckor: Slowly turn on the main water supply. Check all connections for leaks. Run water through the faucet and observe the drain for any signs of leakage.

Figure 2: Product dimensions for installation planning. Basin: 520 x 440 x 190 mm (W x D x H). Pedestal: 180 x 170 x 670 mm (W x D x H).

Figure 3: Detail of the 35 mm faucet hole and 45 mm drain hole with overflow.

5. Bruksanvisning

Once installed, the vidaXL Freestanding Ceramic Basin operates like any standard bathroom sink.

• Use the faucet to control water flow and temperature.
• Den basin is equipped with an overflow to prevent accidental spills if the drain is closed and the water level rises too high.
• Ensure the drain stopper (if installed with your drain assembly) is functioning correctly to retain or release water as needed.

6. Underhåll och skötsel

Proper care will help maintain the appearance and longevity of your ceramic basin.

• Rengöring: Torka av basin and pedestal with a soft, damp cloth and a mild, non-abrasive cleaner. For best results, wipe dry with a clean cloth after cleaning to prevent water spots.
• Undvik starka kemikalier: Do not use abrasive powders, scouring pads, or cleaners containing strong acids, alkalis, or bleach, as these can damage the ceramic glaze.
• Förhindra fläckar: Promptly clean up any spills, especially those from cosmetics, hair dyes, or other staining agents, to prevent permanent discoloration.
• Inspektera regelbundet: Periodically check all plumbing connections for any signs of leaks or corrosion. Address any issues promptly to prevent water damage.

7. Felsökning

If you encounter any issues with your basin, refer to the following common problems and solutions.

Om problemet kvarstår efter att du har försökt med dessa lösningar, vänligen kontakta kundsupporten.

8. Specifikationer

9. Garantiinformation

This vidaXL product is covered by a manufacturer's warranty against defects in materials and workmanship. The specific terms and duration of the warranty may vary by region and product. Please retain your proof of purchase for warranty claims. For detailed warranty information, refer to the documentation provided with your purchase or visit the official vidaXL webplats.

10. Kundsupport

Should you require assistance with installation, troubleshooting, or have any questions regarding your vidaXL Freestanding Ceramic Basin, please contact vidaXL customer support.

• Online support: Visit the official vidaXL webwebbplats för vanliga frågor, supportartiklar och kontaktformulär.
• Kontaktinformation: Refer to your purchase documentation for specific customer service phone numbers or email addresses in your region.

När du kontaktar supporten, vänligen ha produktens modellnummer (142999) och inköpsbevis nära till hands.
